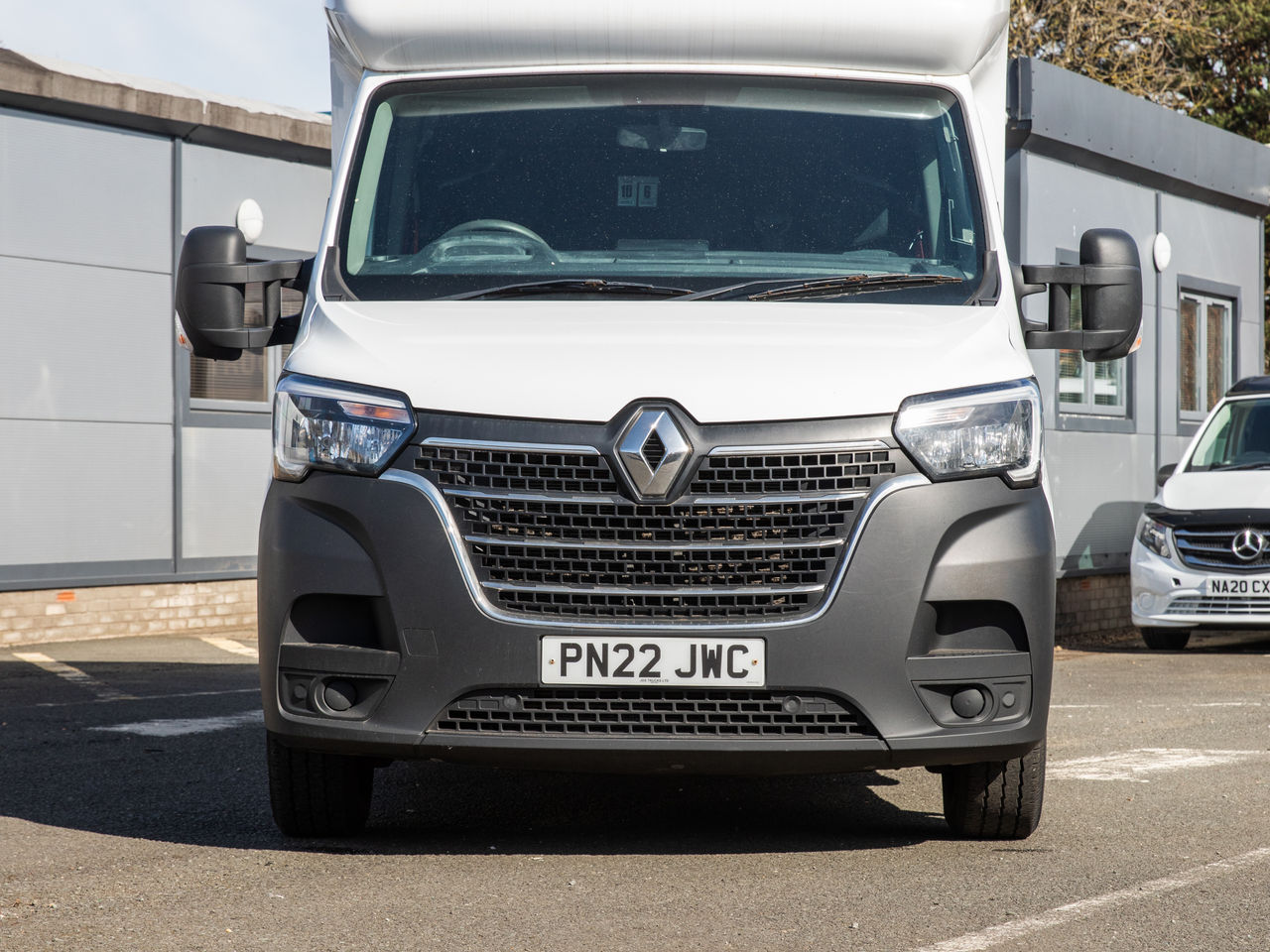

Renault Master Van

This unit is built to insulation spec with the following additional features:

• Height indicator fitted in cab alloy sliding rear step
• Recessed number plate in rear door
• Shamfer rear of the body 50mm supply & fit slimline led vehicle rear lights
• Pullout compressor tray 250kg & storage
• 2 x cavity guns & hose storage
• 3 x door hooks fitted to rear of the body

Bulkhead:

12mm plywood with 228mm alloy kick strip along bottom edge

False bulkhead with access door above the ladder tunnel 1000mm high by 500mm wide & mesh vented window fitted to left side 400mm by 400mm

Sides:

14mm lightweight ecofont renault white panels alloy sideraves fitted along bottom edge internal

228mm alloy kick strip to protect sides

2 x external lockers fitted to front section n/s & o/s internal measurements 980mm long by 500mm high by 480mm depth

Rear frame:

2.5mm galvanised constructed frame fitted with flushfit barn doors with recessed door handles doors finished in white

Roof:

65mm alloy framed constructed roof with galvanised roof bows & bonded fibreglass roof skin
