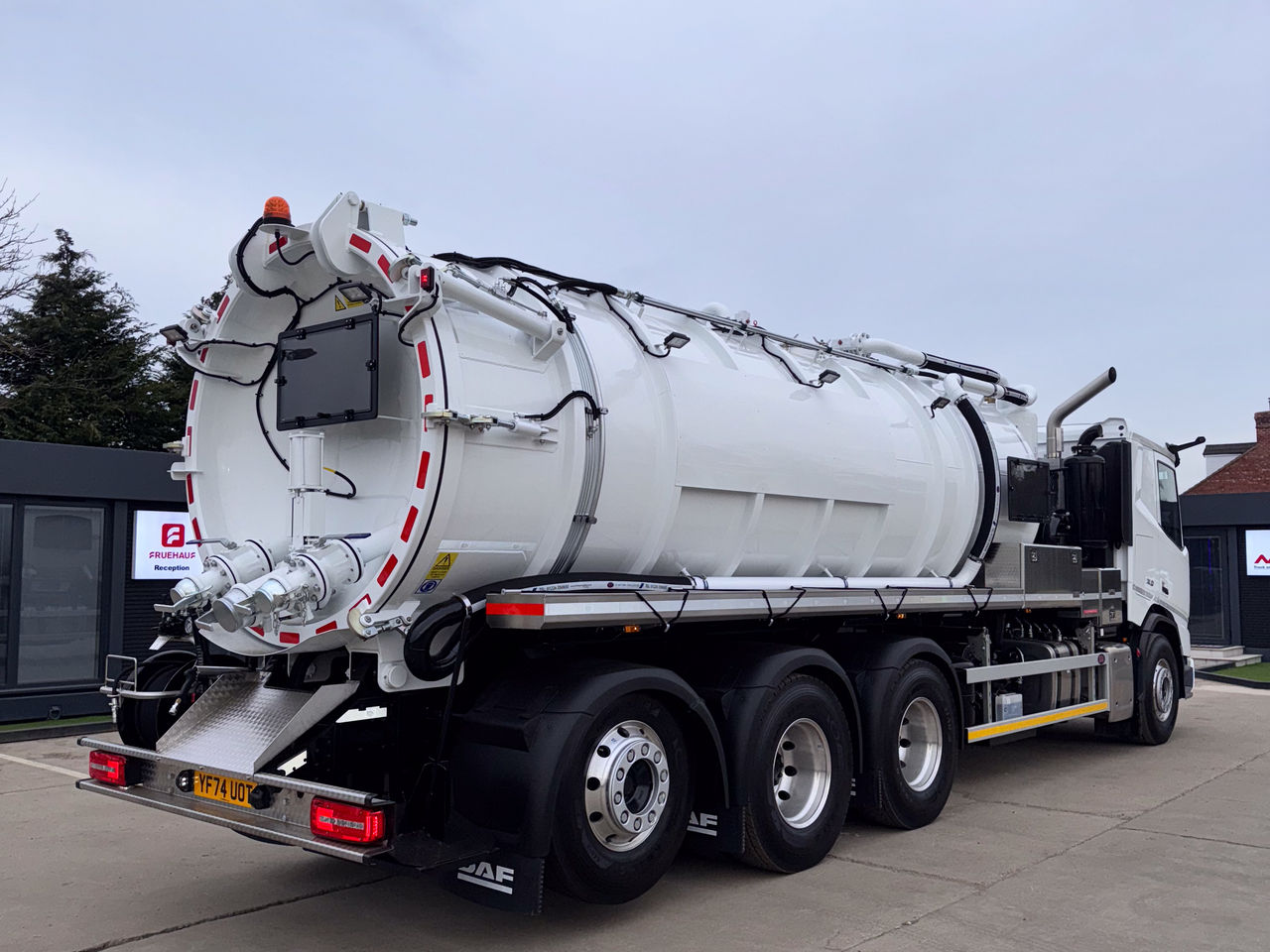

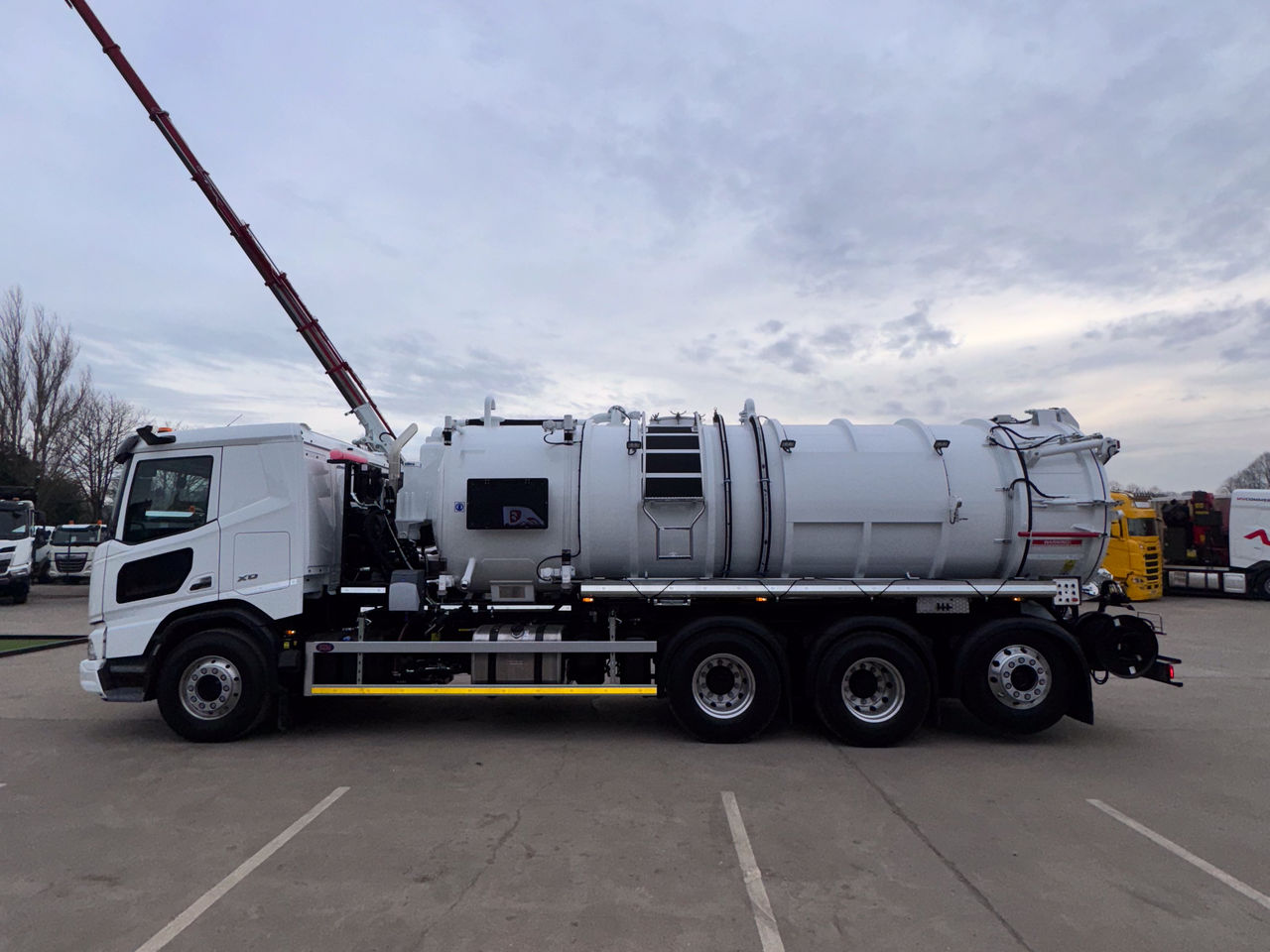

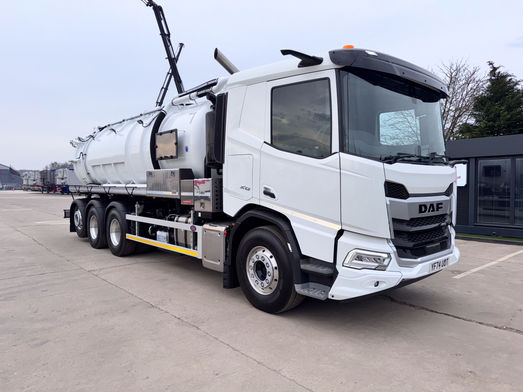

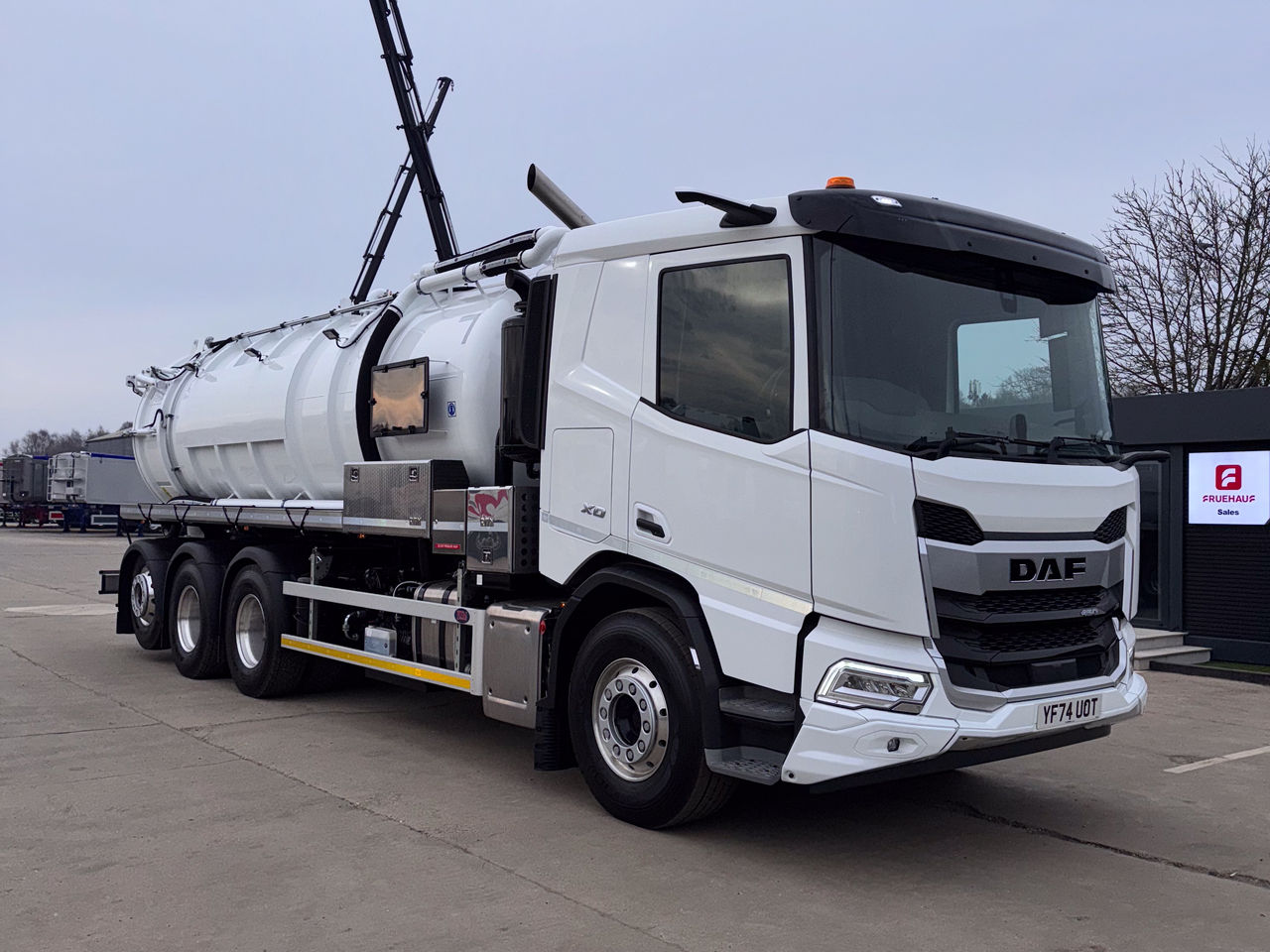

DAF XD 450 Jet-Vac Combination Unit

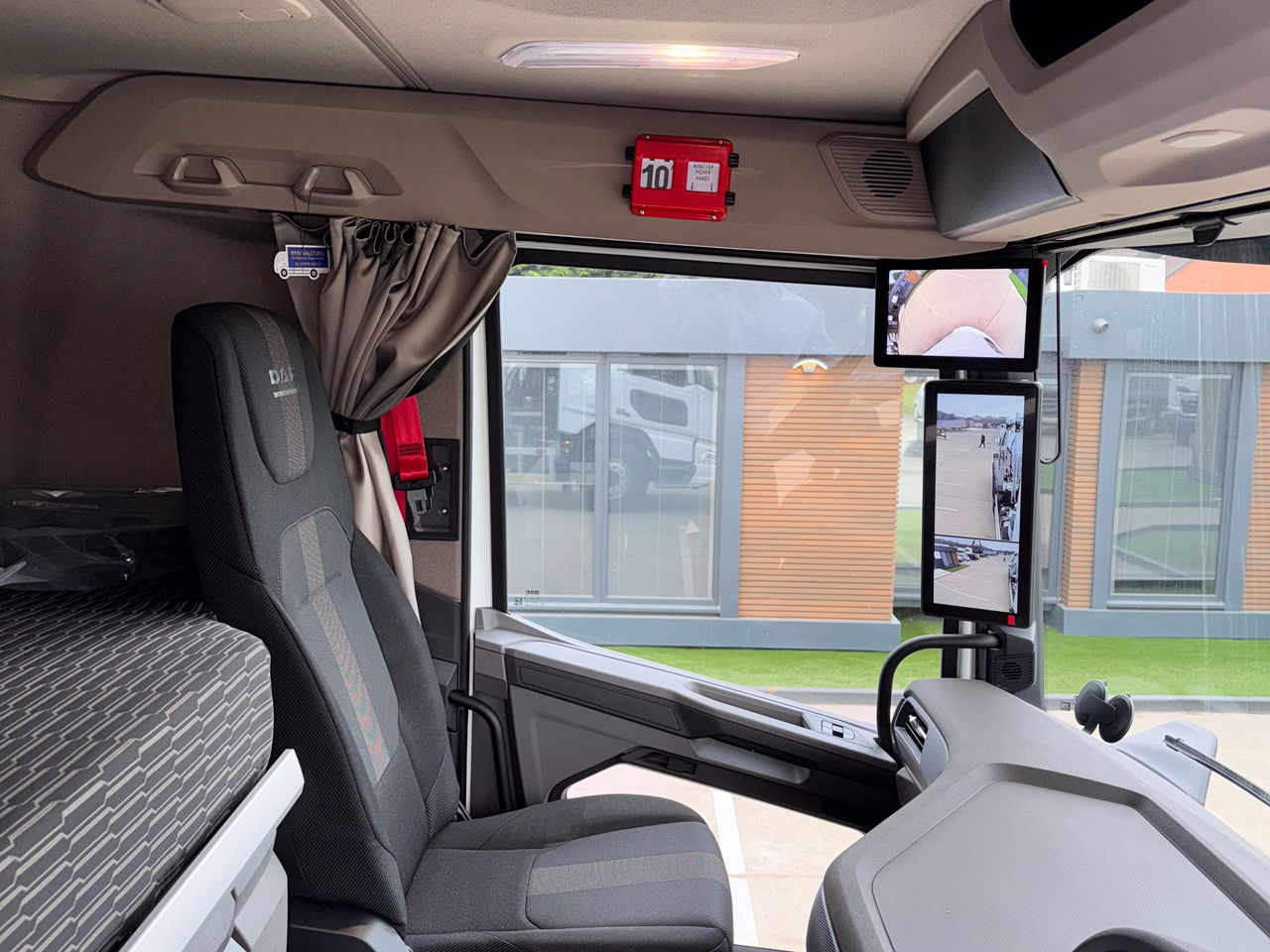

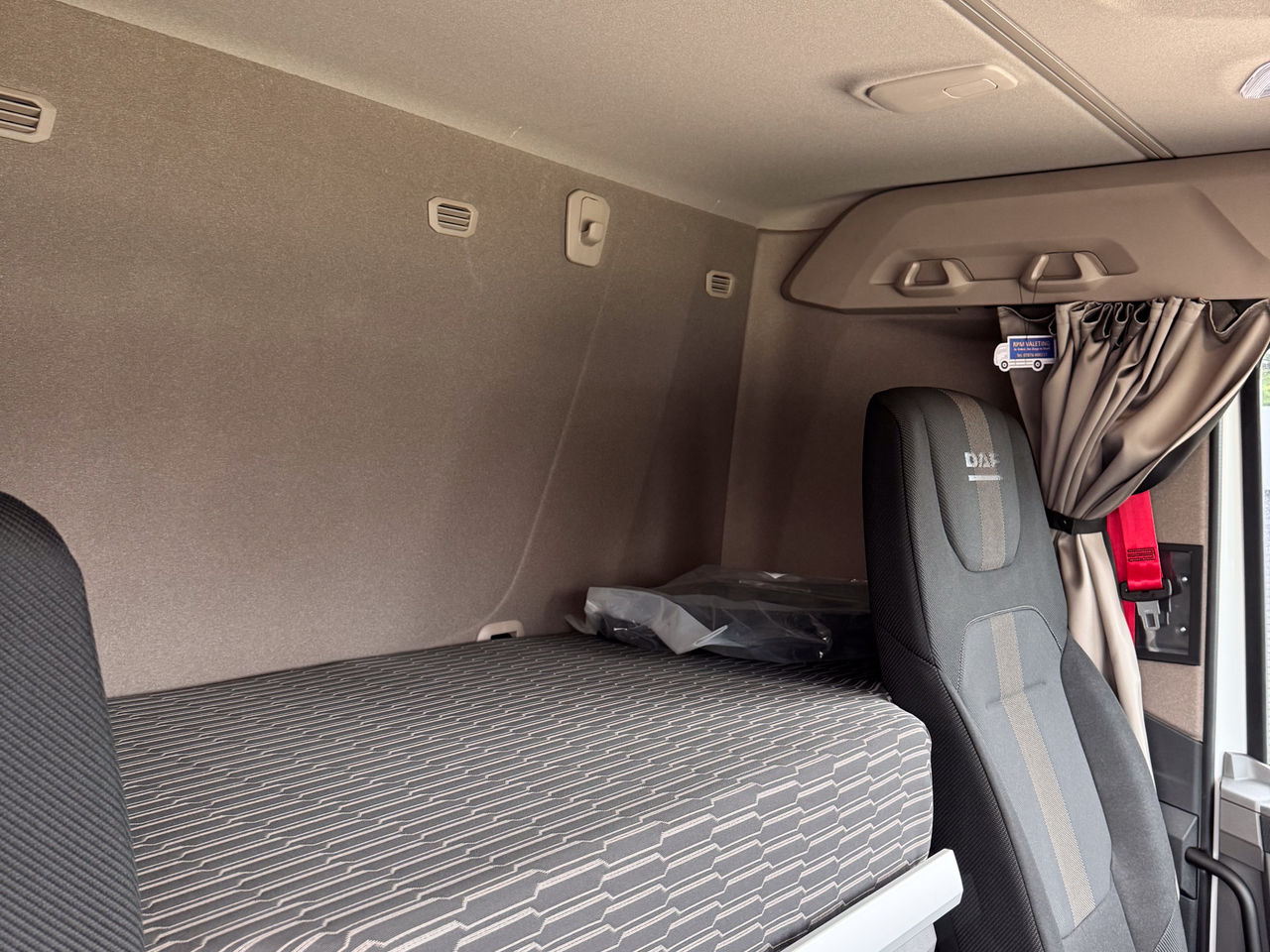

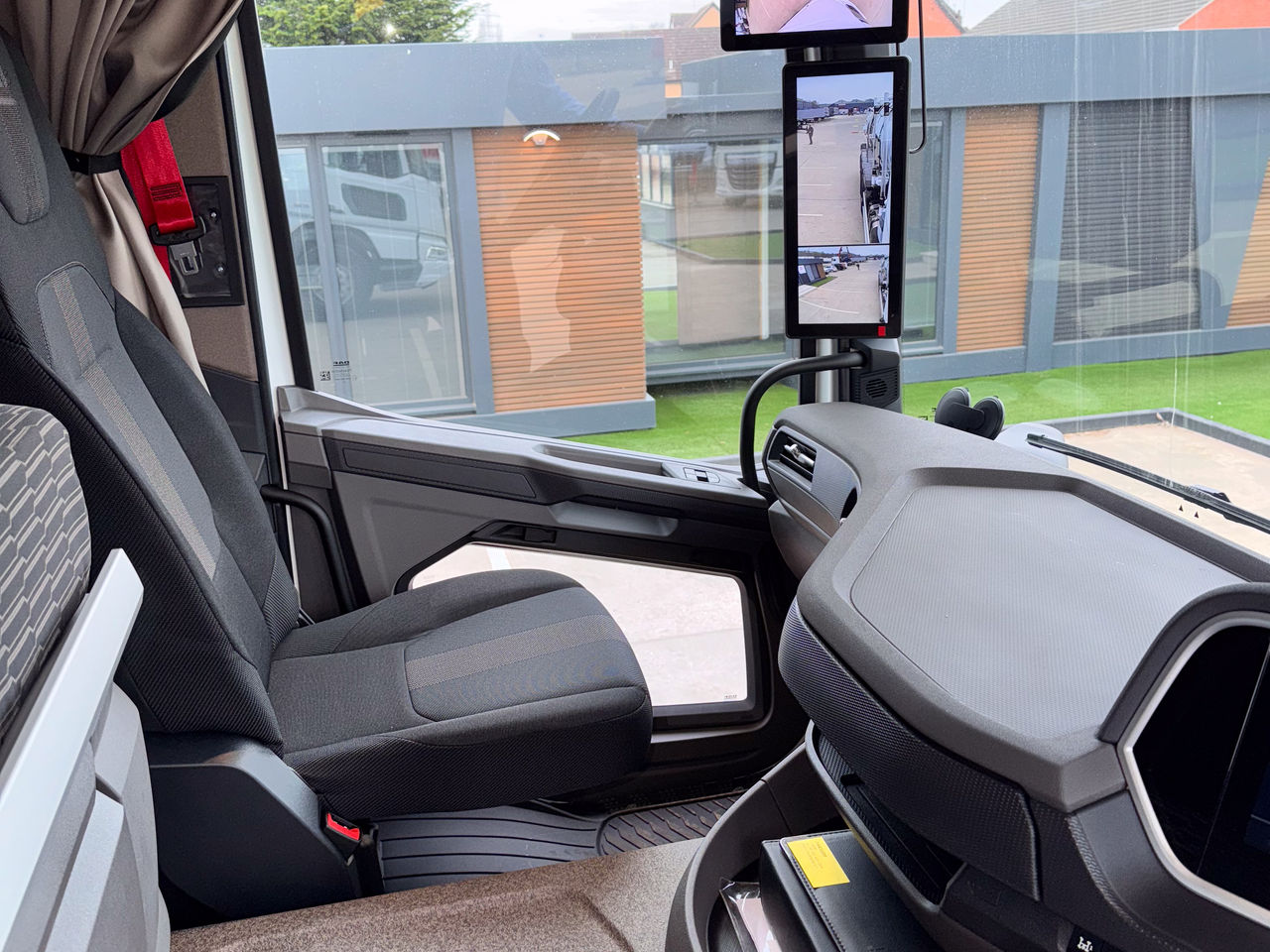

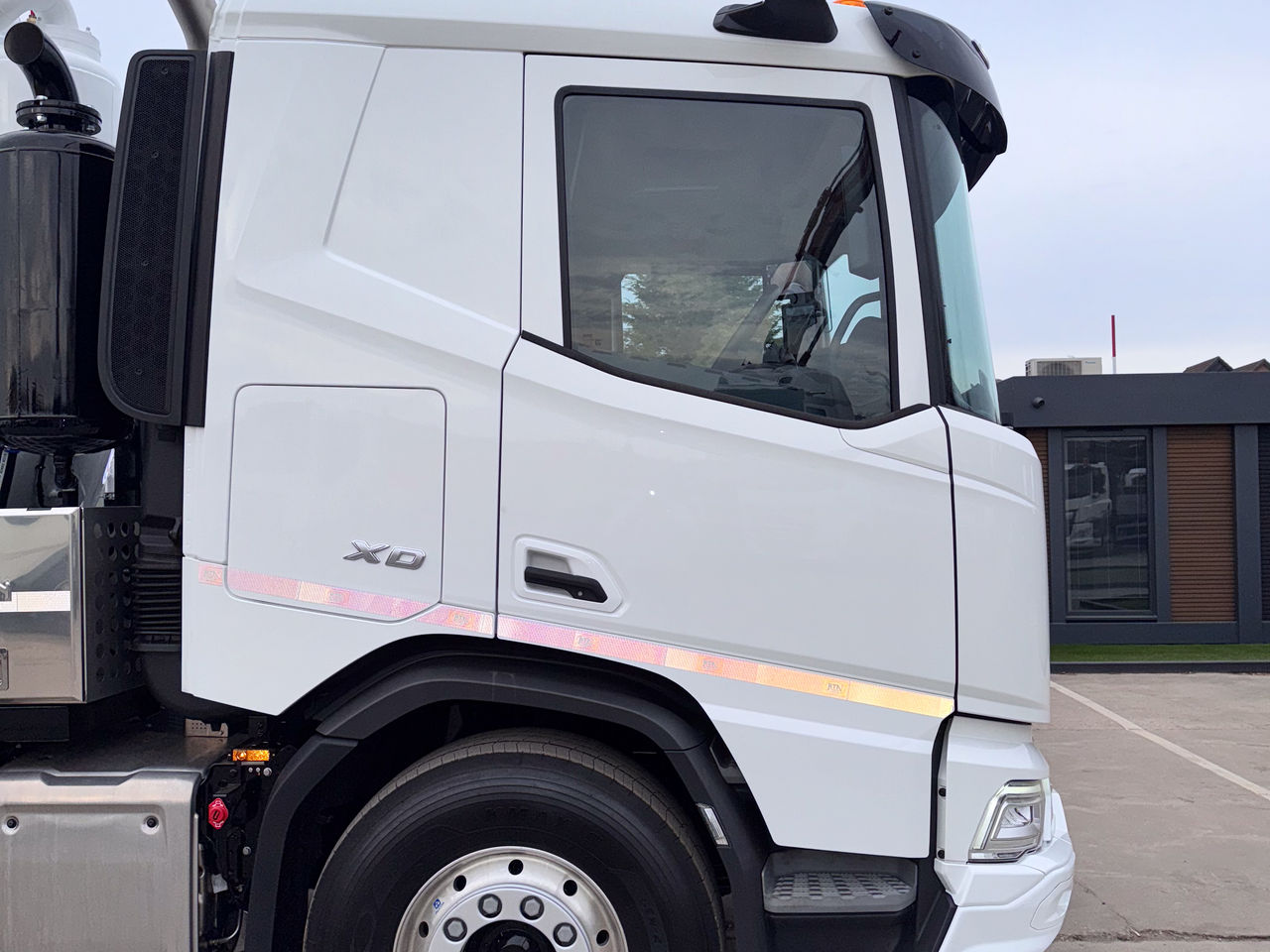

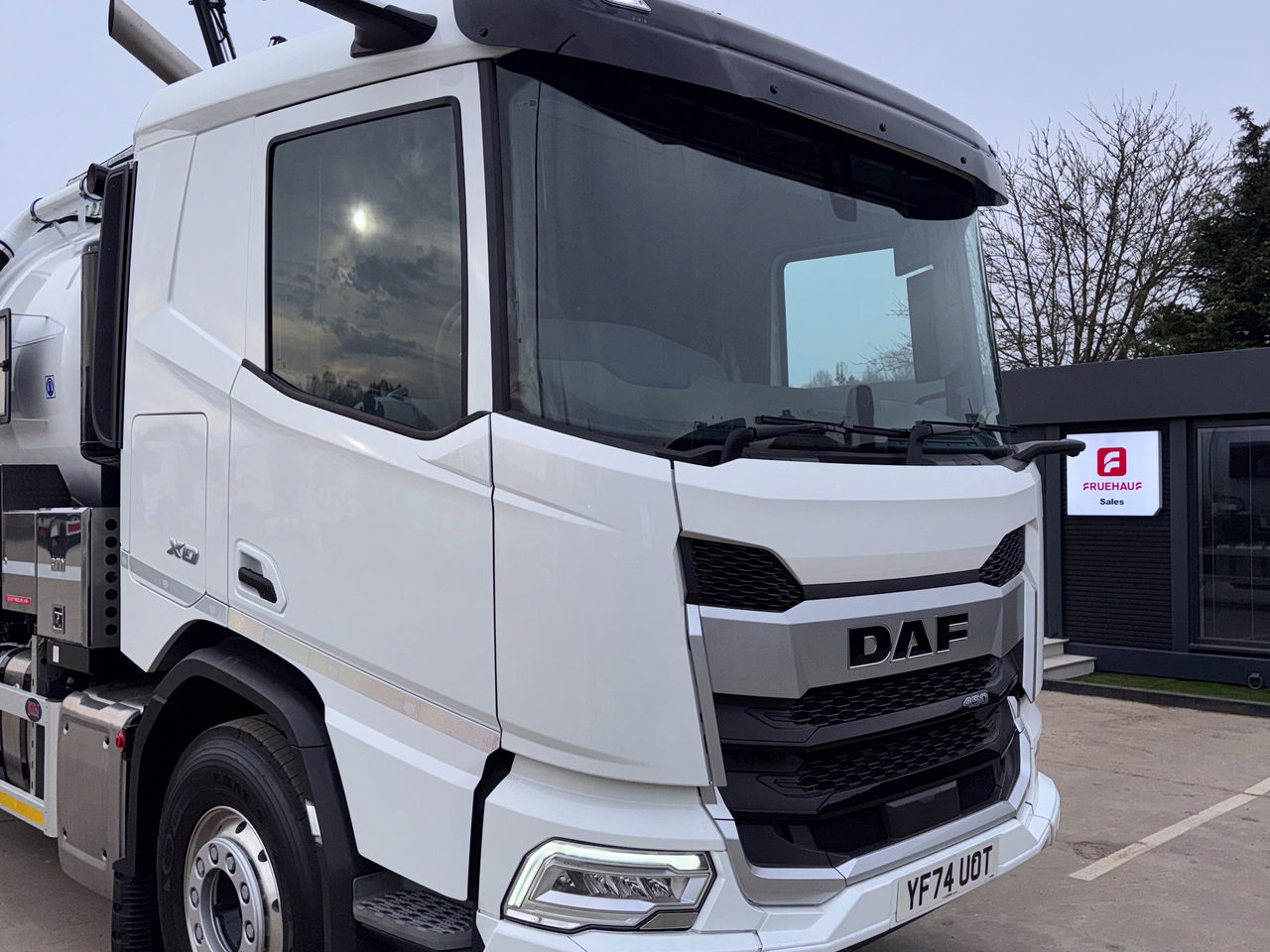

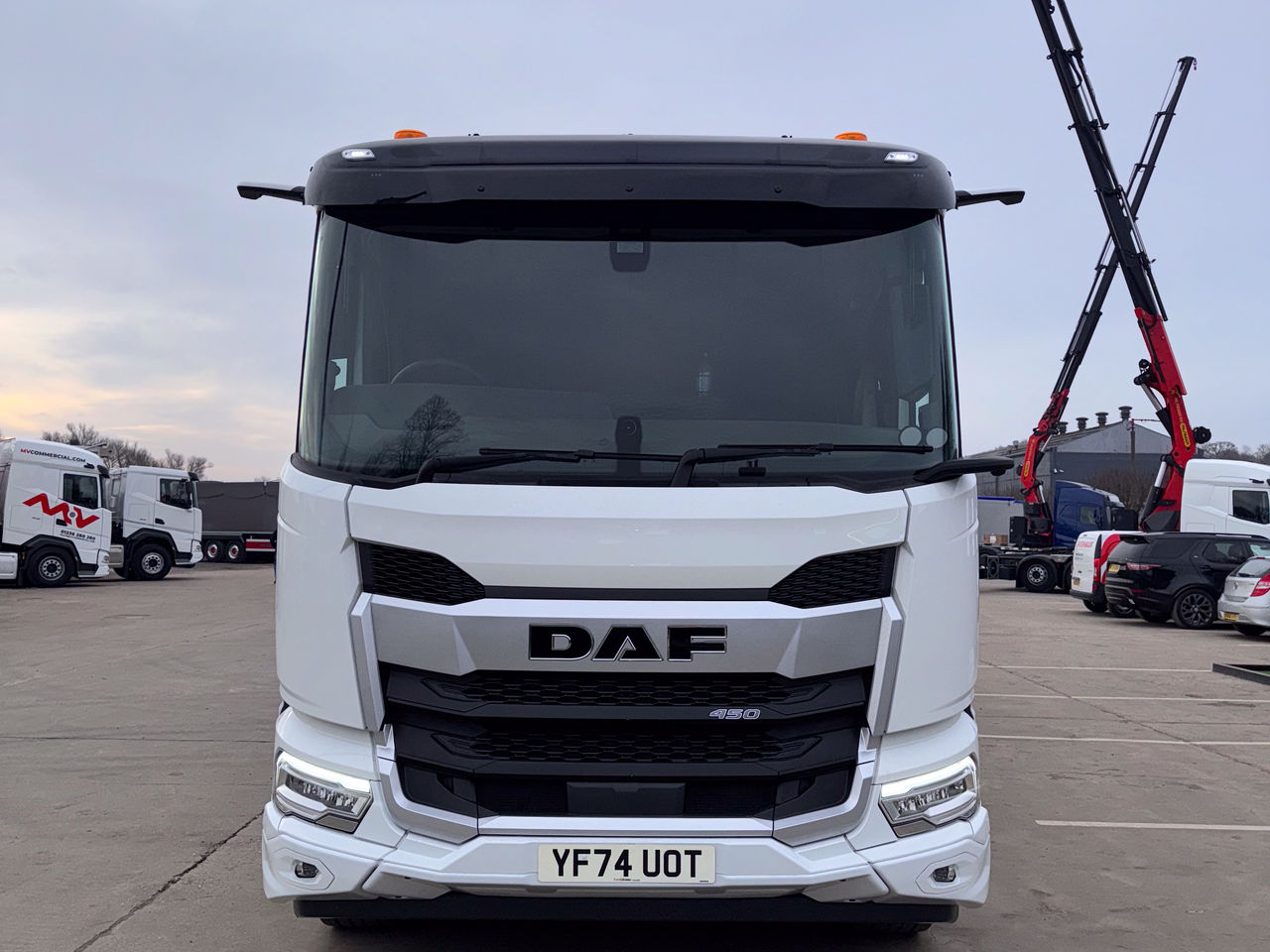

• Chassis: DAF XD 450 FAW 8x4 Tridem, sleeper cab, 3-year warranty & service.

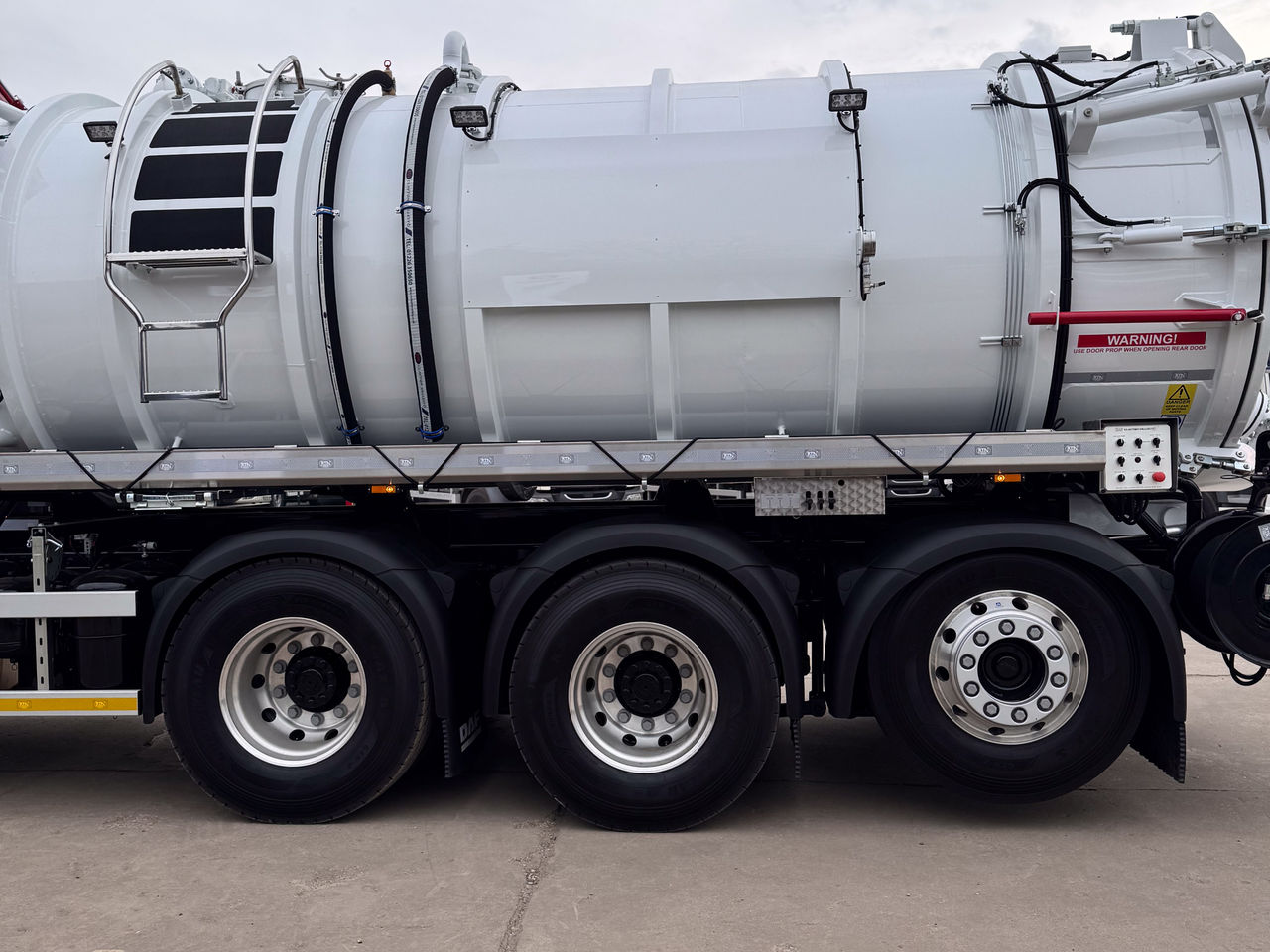

• Tank Capacity: 4200 gallons (3800 debris, 400 clean water), 304 stainless-steel construction.
• Tank Details:
  • 4mm stainless steel body, 6mm ends, 5mm division.
  • Mounted on subframe with multi-stage tipping cylinder.
• Pressure: Working 1 bar max, Test 1.5 bar.

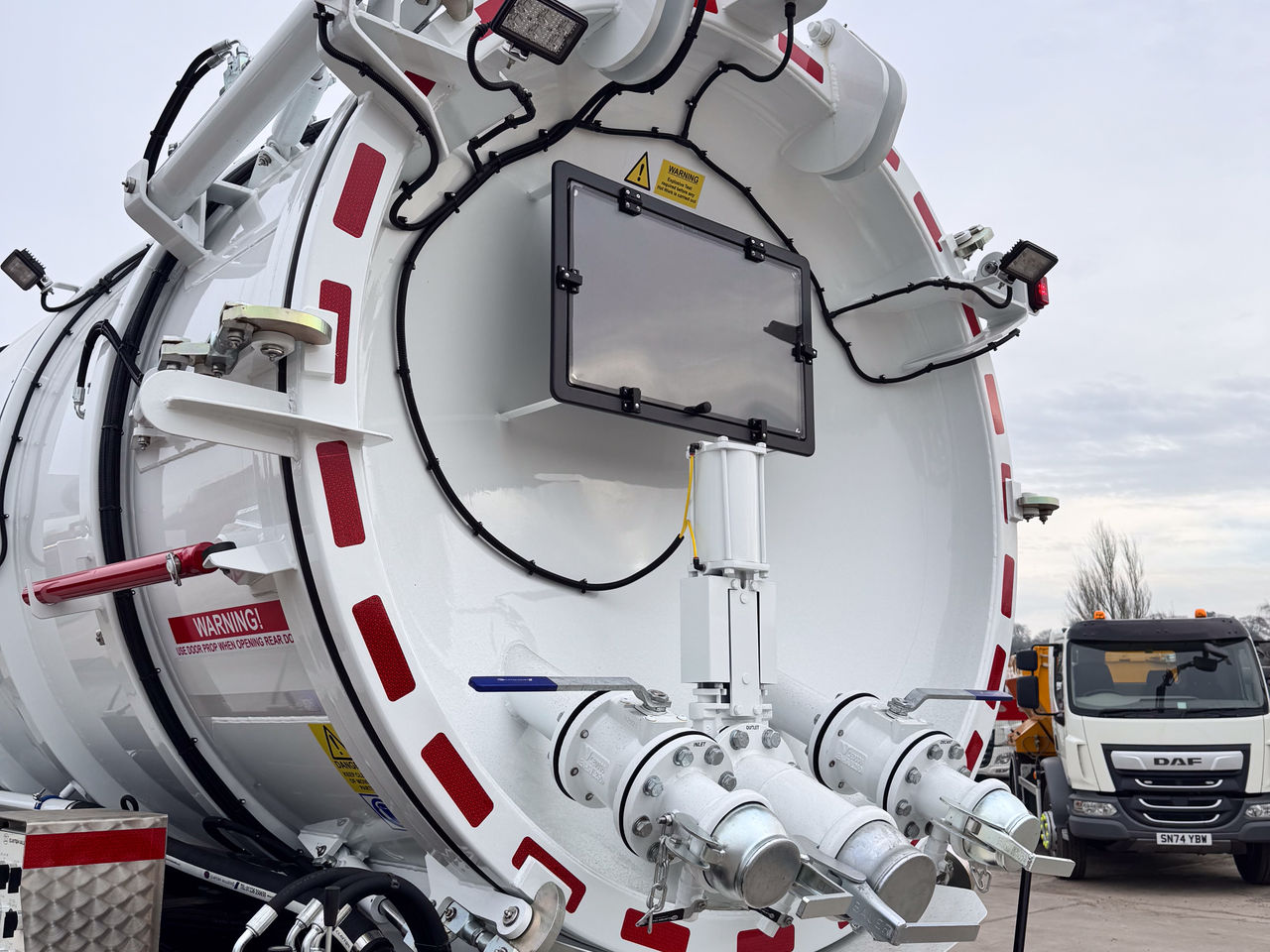

• Rear Door: Hydraulic with 6 PED locks.
• Manway & Ladder: 500mm Fort Vale manway, milk-style ladder.
• Gauge: 100mm vacuum/pressure gauge at rear visibility.
• Content Indicators:
  • Debris: 75mm acrylic sight tube.
  • Water: 2” acrylic sight tube, isolation valve.
• Sign Boards: Aluminum painted, both sides.
• Cone Spike: Holder for 10 cones at rear nearside.

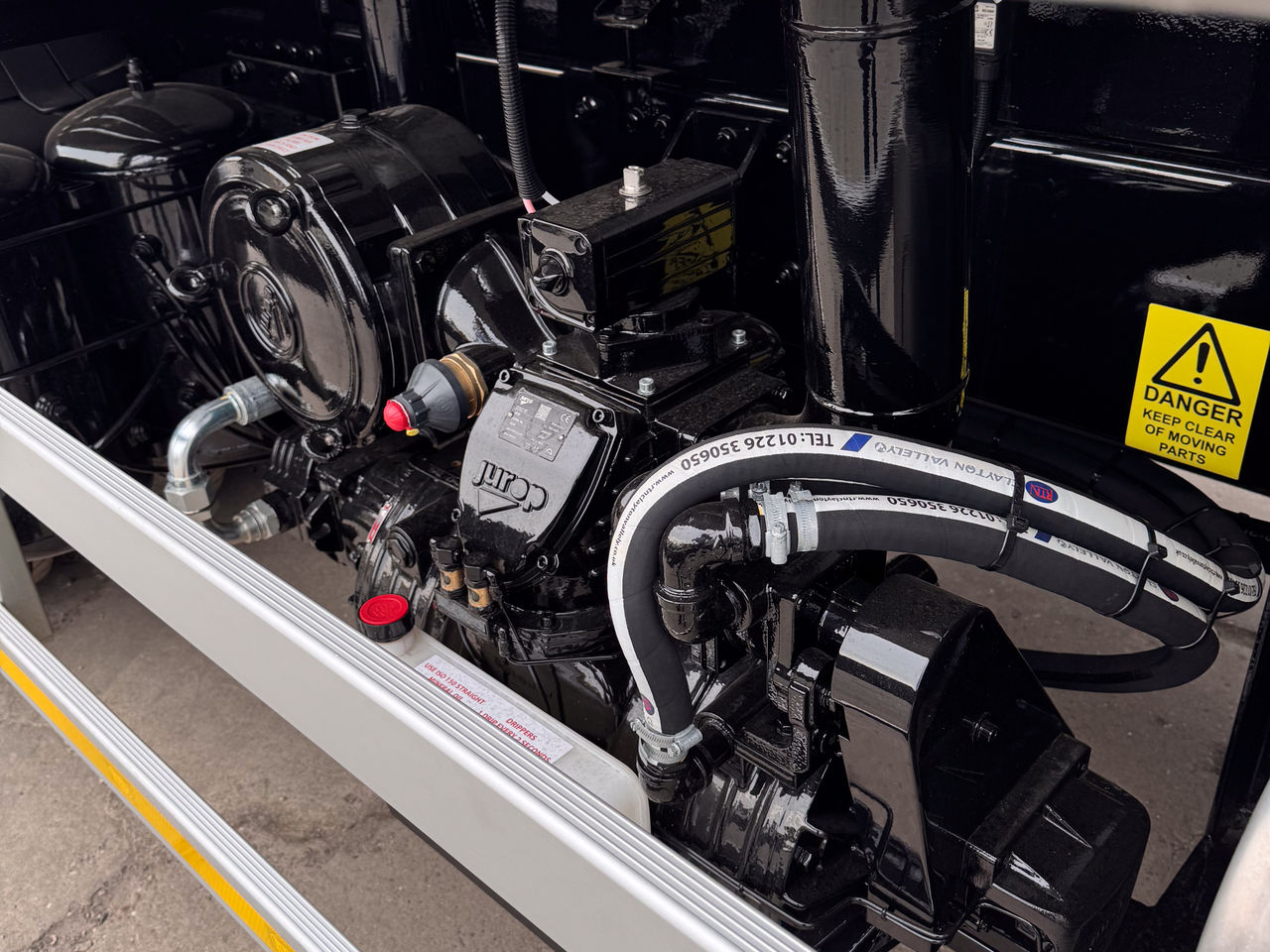

• Vacuum Pump: Jurop LC 750 (750 CFM), water-cooled.
• Cyclone: Not required; stainless-steel secondary cut-out with drain.
• Drive System: Hydraulic PTO for vacuum pump, prop shaft jetting.
• Relief & Vacuum Valves: CE marked, brass construction.
• Jetting System: Speck P52/72-200, 72 L/min at 200 bar, with alarm.
• Hydrant Fill: 2½” UK spec, stainless-steel hose.
• Hose Reel: 120m stainless-steel, hydraulic control.
• Frost Protection: Blow-out system.
• Inlet/Outlet Valves:
  • 4” inlet valve, bottom loading.
  • 6” pneumatic slider outlet valve.
• Decant Valve: 4” valve with filter for water separation.

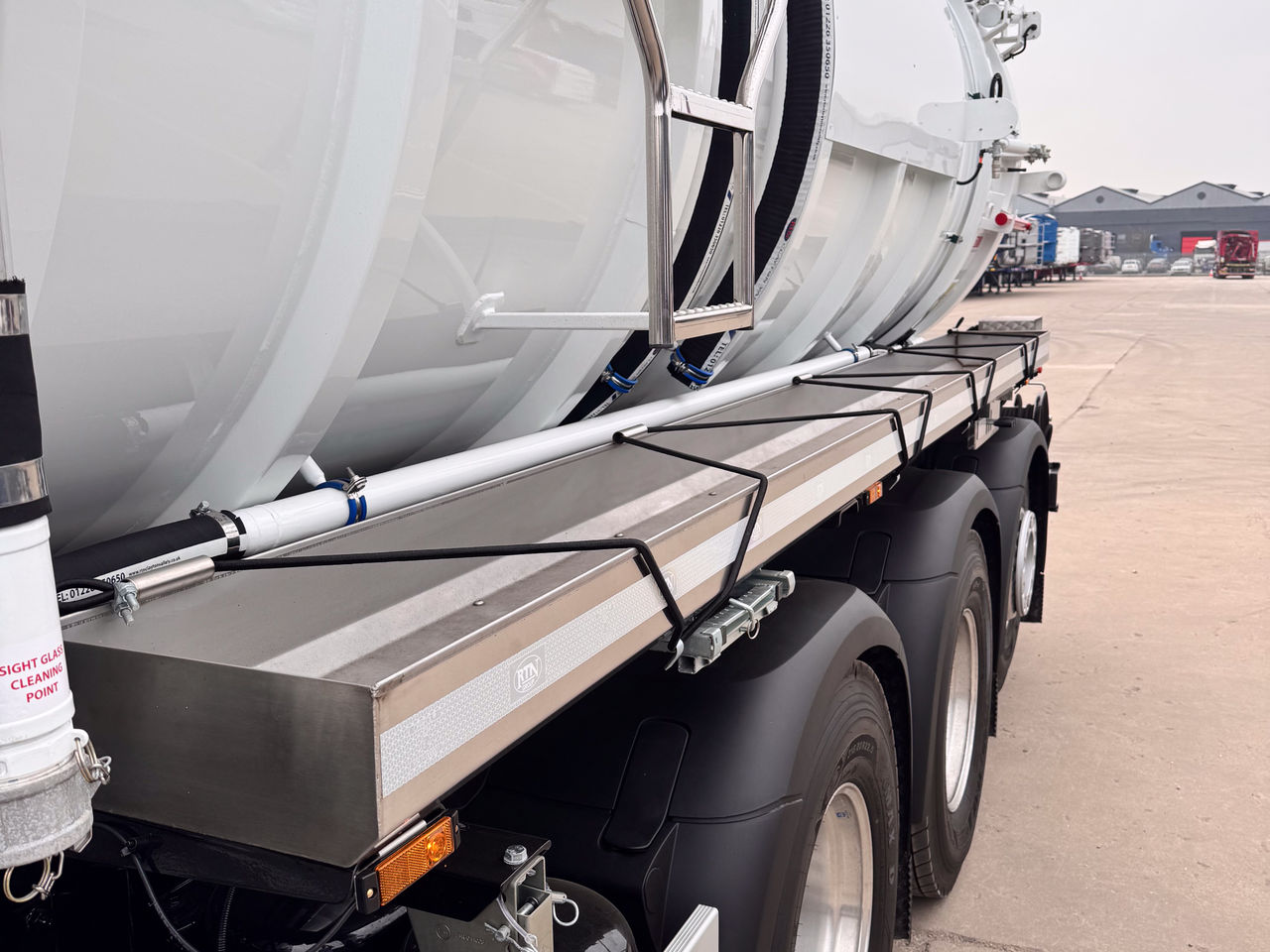

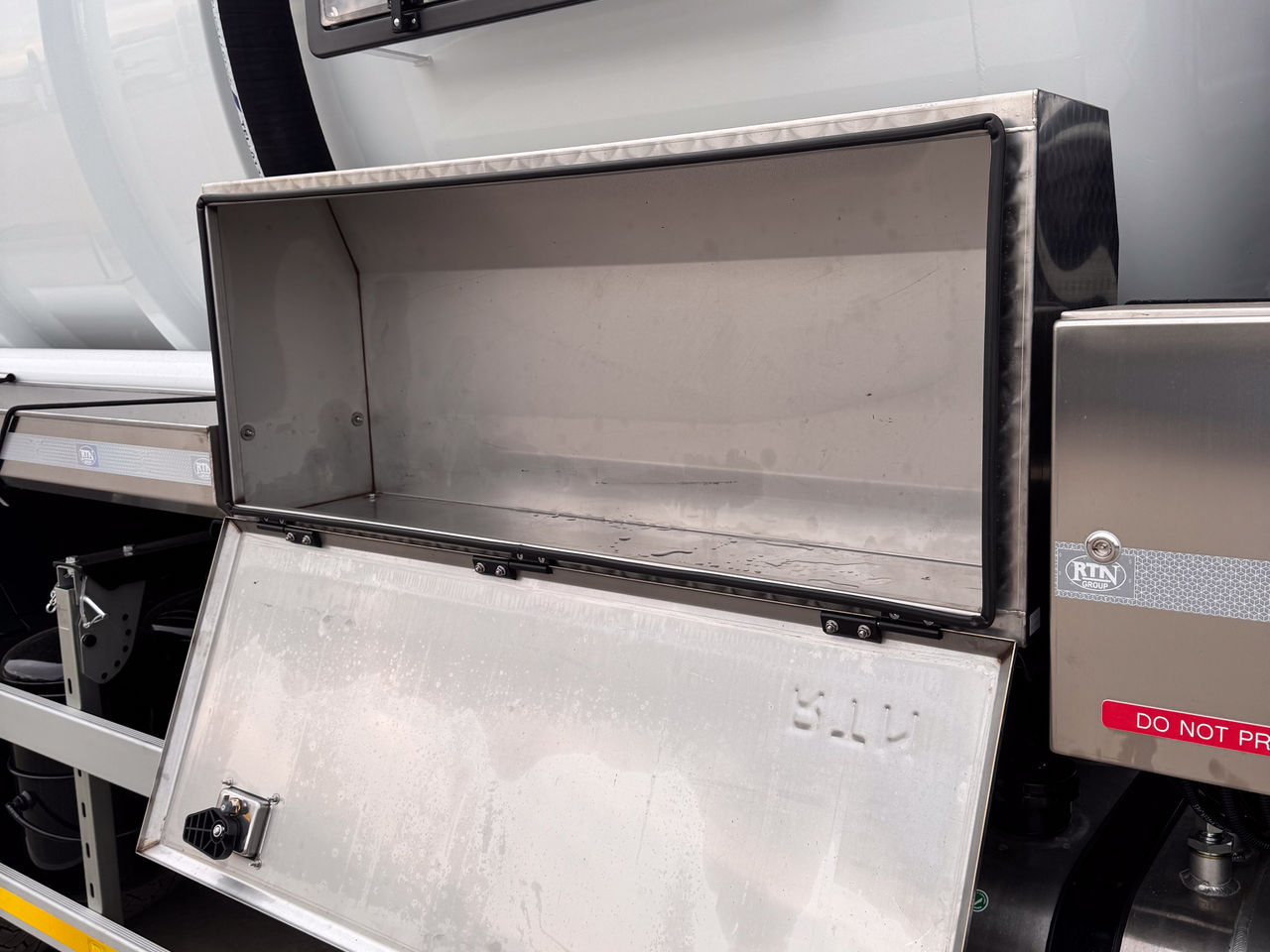

• Storage: Stainless-steel lockers/trays.
• Hydraulics & Controls: 80-liter tank, standard cooler, protective control box.

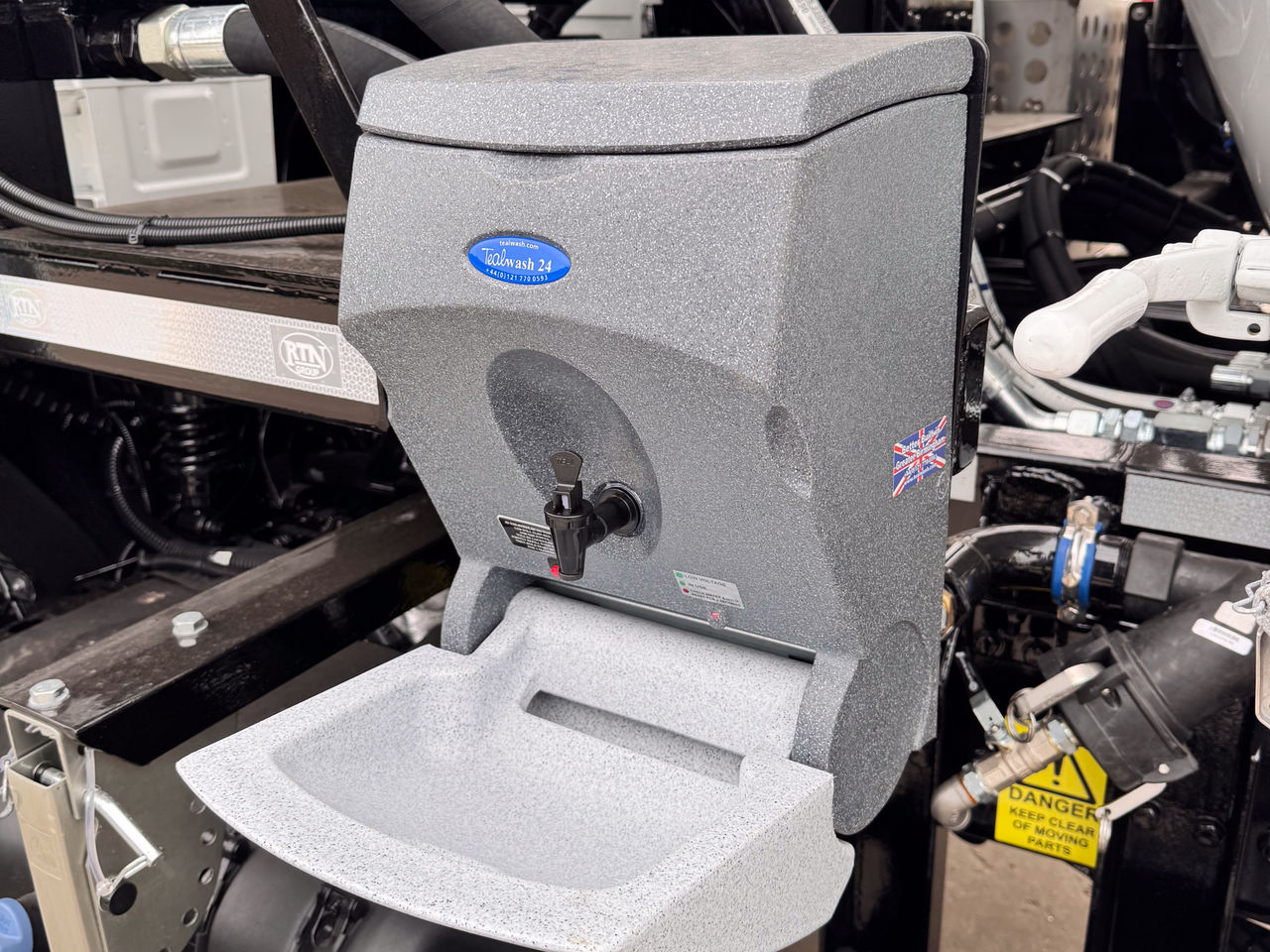

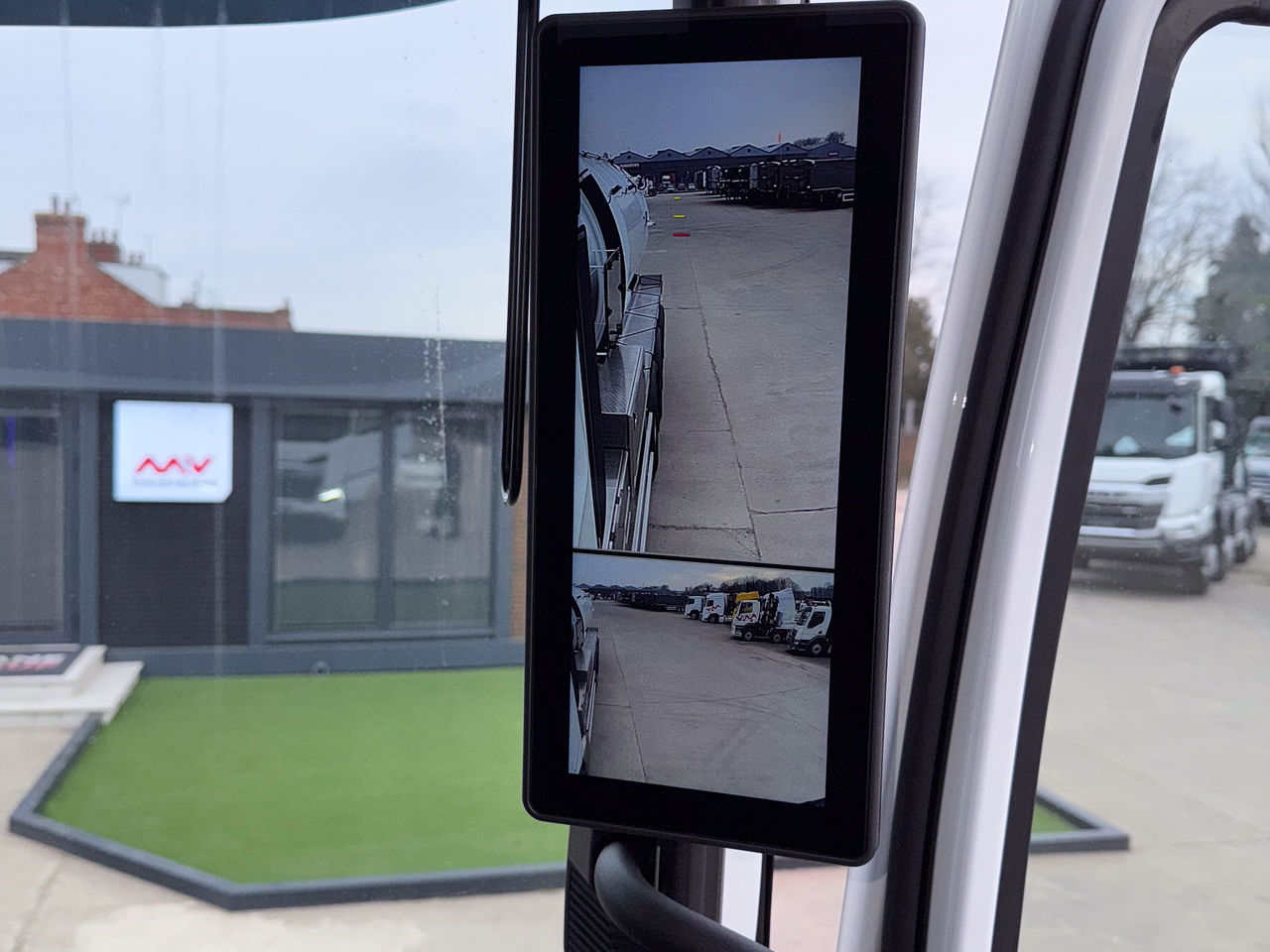

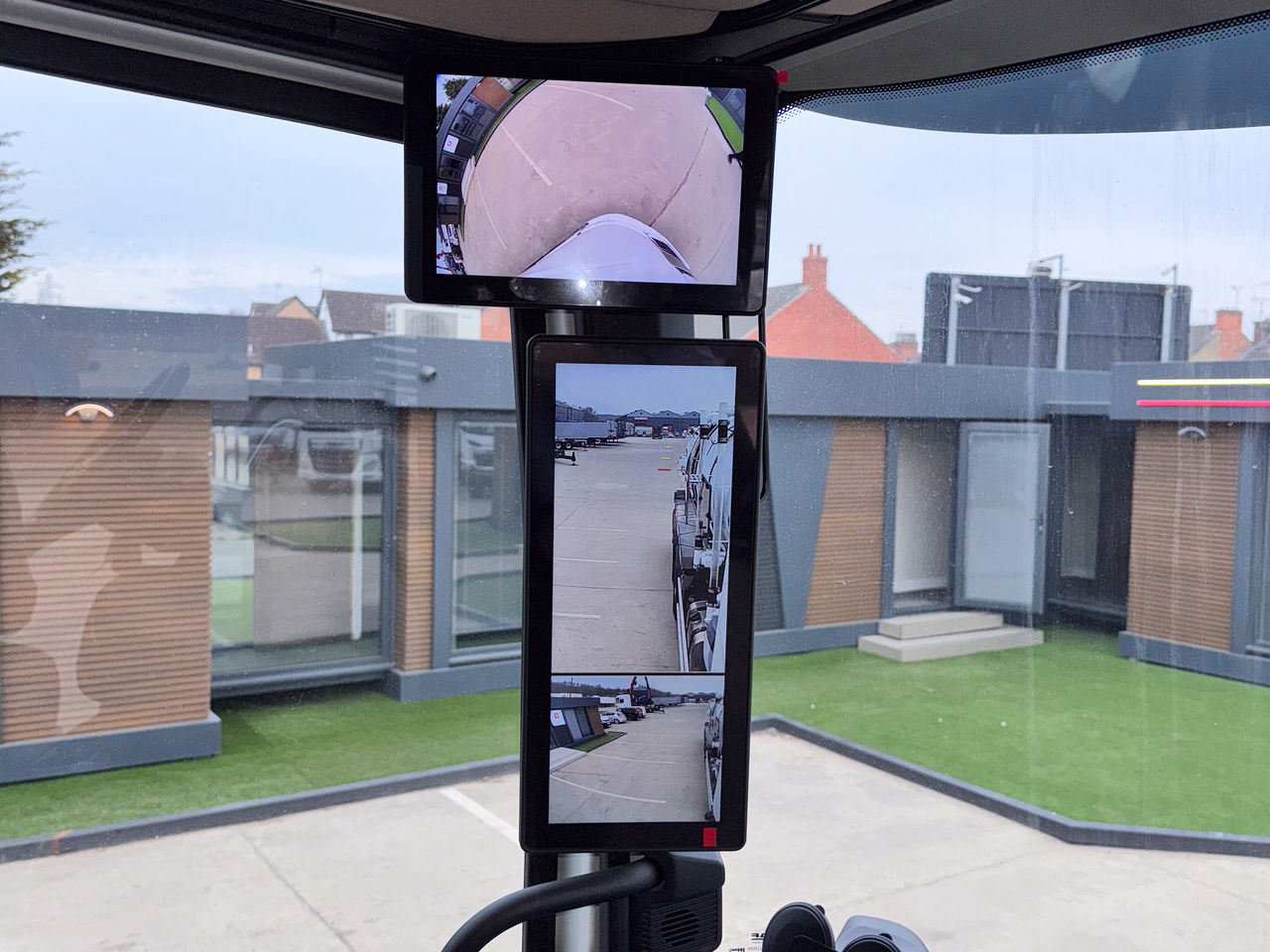

• Safety & Accessories: Reverse camera, work lights, heated handwash unit, mesh basket.
• Finish: Two-pack paint system (two colors, non-metallic).
• Documentation: Operator manual provided.
